SPECIFICATIONS

Battery Type: Lithium ion

Beam Angle: 180 °

Brand Name: TrustFire

Certification: CCC,ce,ROHS,CE

High-concerned chemical: none

Is Batteries Included: Yes

Item Type: Headlamps

Light Source: LED

Model Number: H6R

Nominal Voltage: 3.7 V

Origin: Mainland China

Switch Mode: High/Middle/Low

Waterproof: Yes

Wattage: output 12W

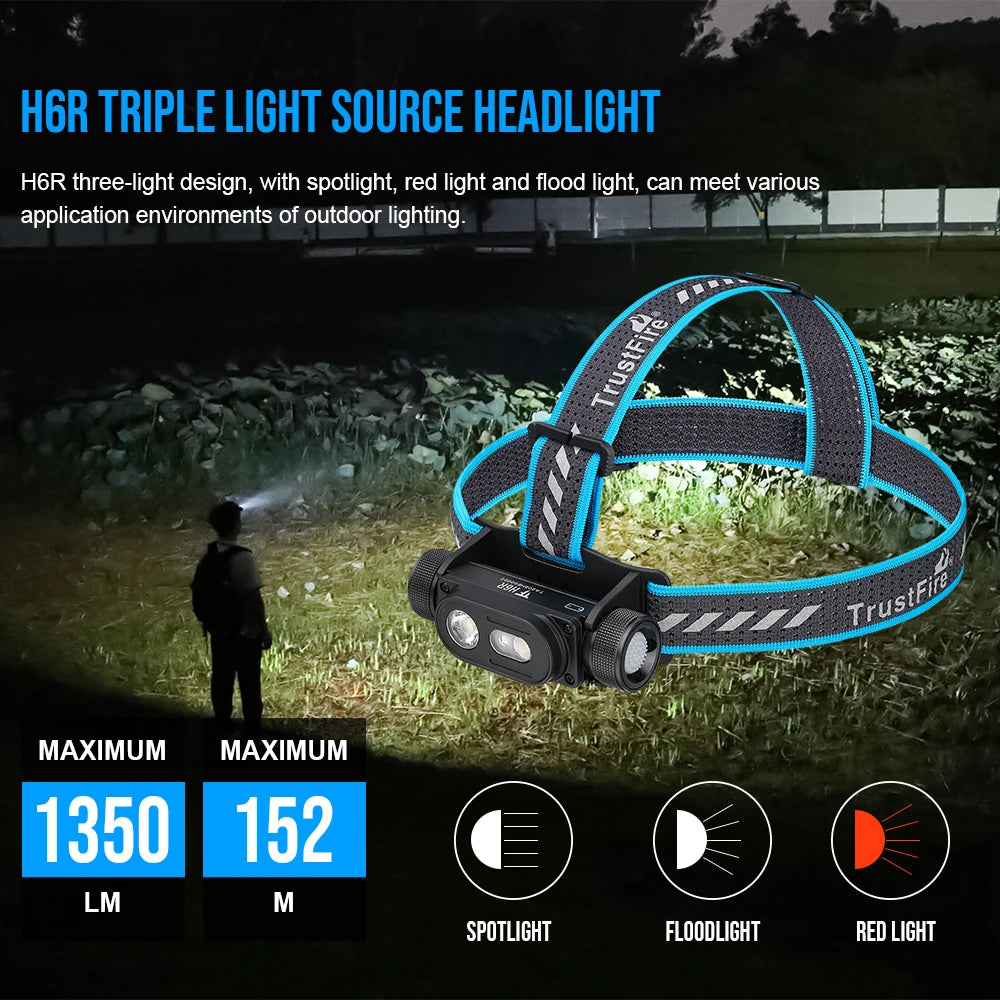

H6R TRIPLE LIGHT SOURCE HEADLIGHT

H6R three-light design, with spotlight, red light and flood light, can meet various application environment of outdoor lighting.

Max brightness:1350Lumens, Max beam range:152Meters

Feature: Spotlight,Floodlight,Red light

1350 LUMENS. A RANGE OF 152 METERS

High-brightness and long-range shots, escorting outdoor activities at night

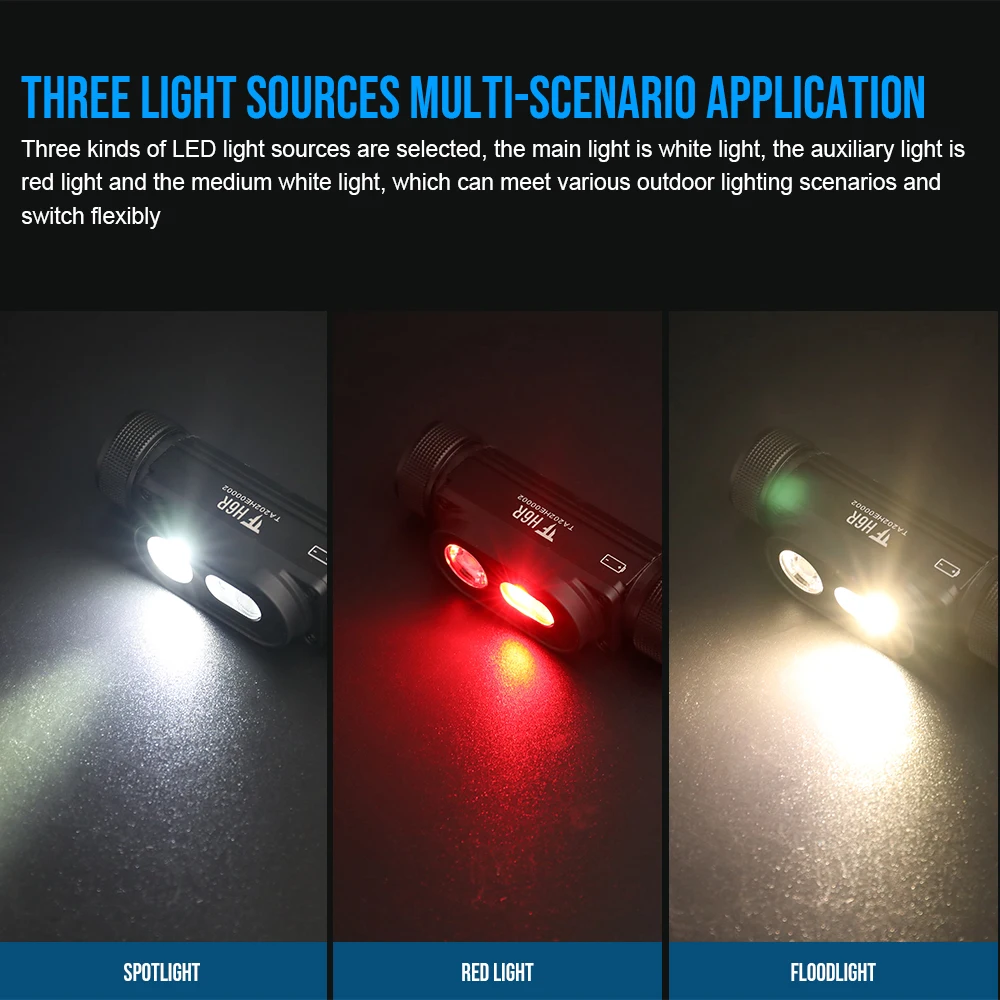

THREE LIGHT SOURCES MULTI-SCENARIO APPLICATION

Three kinds of LED light sources are selected, the main light is white light, the auxiliary light is red light andthe medium white light, which can meet various outdoor lighting scenarios and switch flexibly

THE FRONT IS CLEAR AND THE NEAR IS DETERMINED

You can have a panoramic view of the road ahead, or illuminate the road under your feet, making your steps more firm.

FLOOD LIGHTING

The floodlight adopts 4000K, CRI95 high-display optical system to restore the real scene and make viewing comfortable.

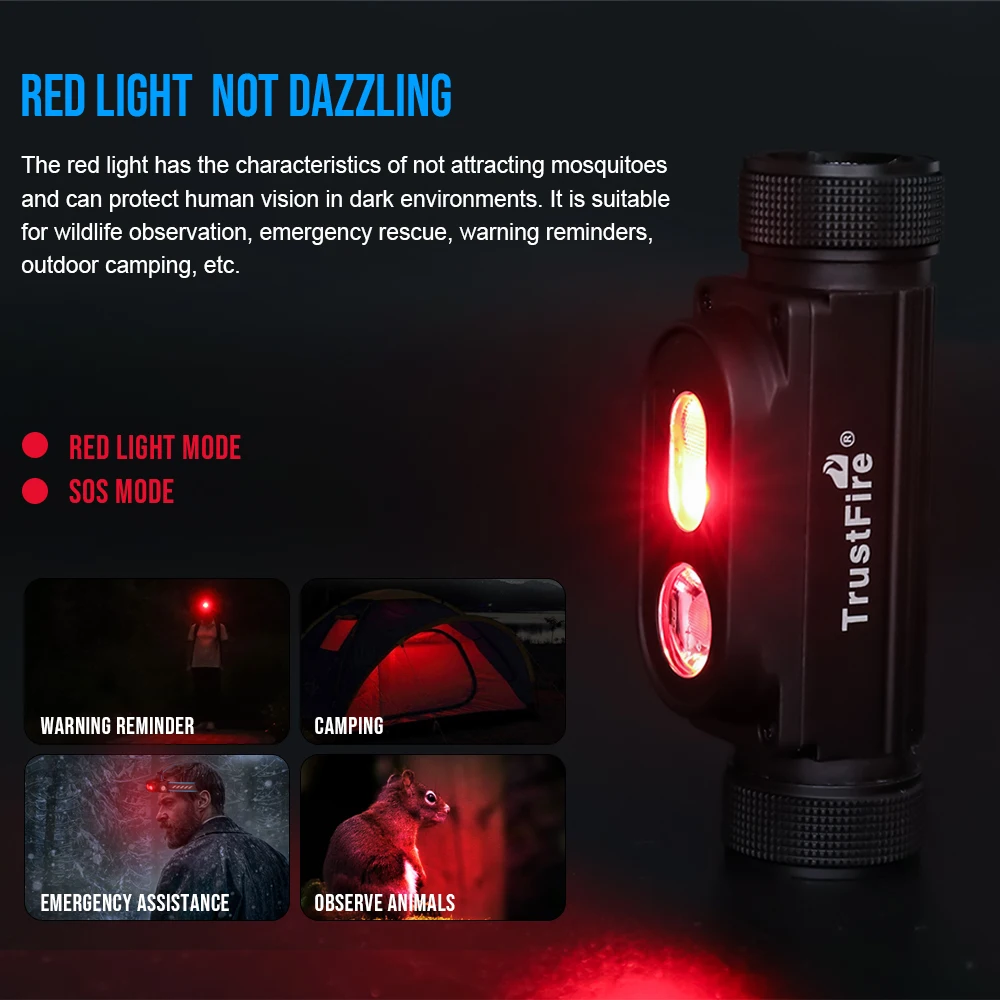

RED LIGHT NOT DAZZLING

The red light has the characteristics of not attracting mosquitoes and can protecthuman vision in dark environments. It is suitable for wildlife observation, emergencyrescue, warning reminders, outdoor camping, etc.

ONE-BUTTON OPERATION

One key operation, easy to use

ON/OFF

Long press for 0.5 seconds to tum on the spotlight; double-click the switch to turn on the function lighting

Long press the switch for 0.5 seconds to shut down

MODE SWITCHING

In the power-on state, press and hold the switch for 1.2 seconds to switctmodes, and the two modes cannot be turned on at the same time

GEAR SWITCH

-SPOT LIGHTING:In the power-on state, click the switch to adjust the brightness accordingto the cyde sequence of low brightness, medium brightness, highbrightness and extreme brightness

-FUNCTIONAL LIGHTING

In the power-on state, click the switch to adjust the brightness according to thecycle sequence of red light, medium light, and high light - SOS.

-LOCK/UNLOCK

LOCK:In the off state, after pressing the button for 3 seconds. the red light flashes 3 times to indicate that it has been locked;

UNLOCK:in the locked state, press and hold the button for 3 seconds, the red light flashes 3 times and then unlocks, and lights up in red;

LOCK FALSE TOUCH:In the locked state, click any button, the red light will flash 3 times as a reminder and then turn off.

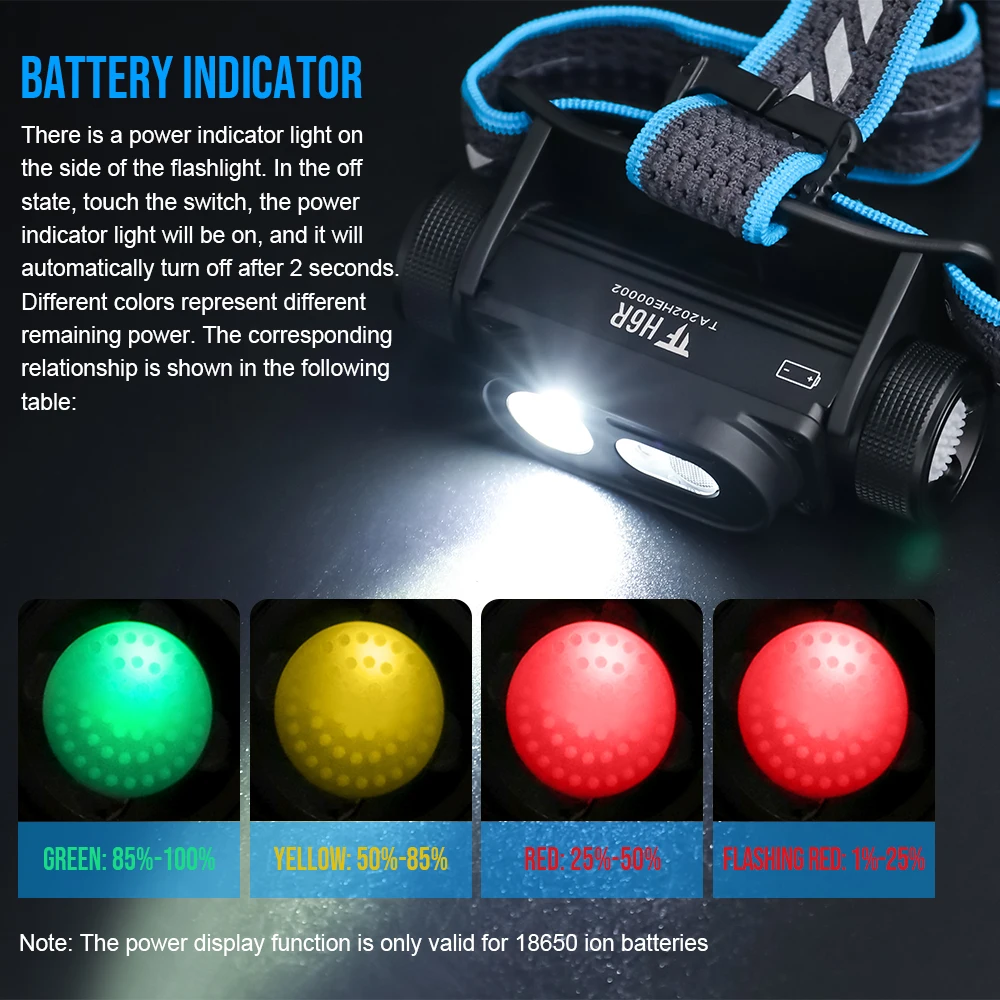

BATTERY INDICATOR

There is a power indicator light on the side of the fiashlight. In the offstate, touch the switch, the power indicator light will be on, and it willautomatically turn off after 2 seconds. Different colors representdifferent remaining power. The corresponding relationship is shownin the following table:

Green:85%-100%

Yellow:50%-85%

Red:25%-50%

Flashlight red:1%-25%

HIDDEN WATERPROOF TYPE-C INTERFACE

HIDDEN TYPE-C CHARGING PORT DESIGN

Effectively waterproof and dust-proof, ensuring safe use

INNER WATERPROOF DESIGN:

Even if the charging port accidentally enters the water, it can still work normally

RED: CHARGING

GREEN: FULLY CHARGED

Input voltage current: 5V1A

Output voltage and current :4.2V1A

The red light is displayed during charging,and the green light is displayed when it is fully charged.

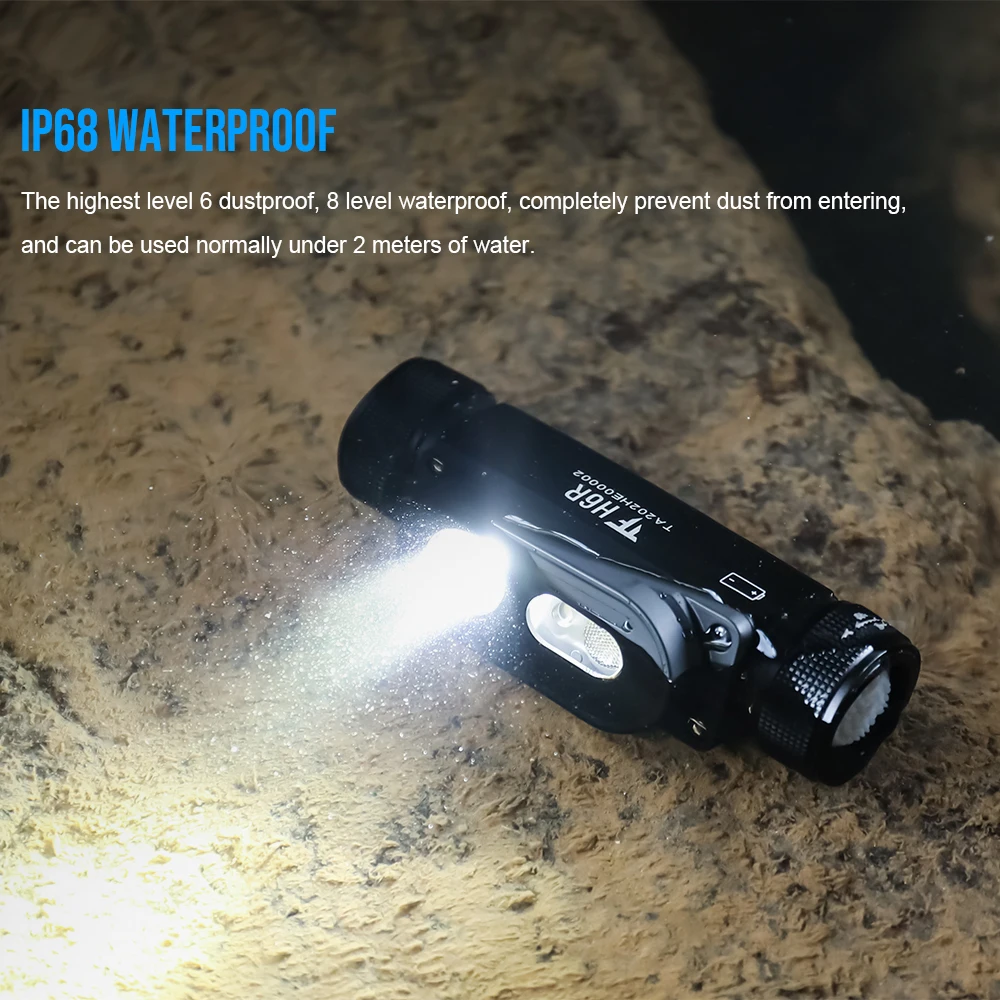

IP68 WATERPROOF

The highest level 6 dustproof, 8 level waterproof, completely prevent dust from entering.and can be used normally under 2 meters of water.

180°ALL-ROUND LIGHTING

The angle of illumination of the lamp can be adjusted up and down to ensure that there is no dead angle for outdoor lighting.

HIGH ELASTIC REFLECTIVE & HOLLOW HEADLIGHT BELT

Hollow-out technology, light and breathable, and large-areareflective strips, effectively improving the safety of night activities.

1/TOP STRAP DESIGNeffectively prevent the headlamp from slidingand improve wearing stability

2/MADE OF HIGH-STRENGTH NYLON MATERIALlt can wthstand 3000 pull tests and is still inhormal use. (The abave data are measured in theTrustfire laboratery enviranment)

3/SILICONE SWEAT GUIDE NON-SLIPIt is not only non-slip but also effectivelyprevents sweat from invading the eyes

H6R DIMENSIONS AND WEIGHT

90mm(L)X 45mm(W) 45mm(H)

Net weight: 150.6g (including battery and headlight belt)

Product Features:

01. Use 4000K, CRI95 high CRI flood optical system;

02. The highest brightness is 1350 lumens, and the longest range is 152 meters;

03. Use the LED with international patent life span of 50,000 hours;

04. One Li-ion battery is standard, compatible with two CR123A batteries;

05. Using double-sided anti-reflection film tempered glass lens, the lighting is clear;

06. Hidden inner waterproof Type-C interface design, more efficient charging;

07. High-brightness floodlighting, red lighting, multi-scene application;

08. Side switch, one-button control, easy to operate;

09. Adopt high-quality PC material and aluminum alloy, light and wear-resistant;

10.Dimensions: 90mm(L) x45mm(W)X 45mm(H);

11. Net weight: 150.6 grams (including battery and headlight belt).

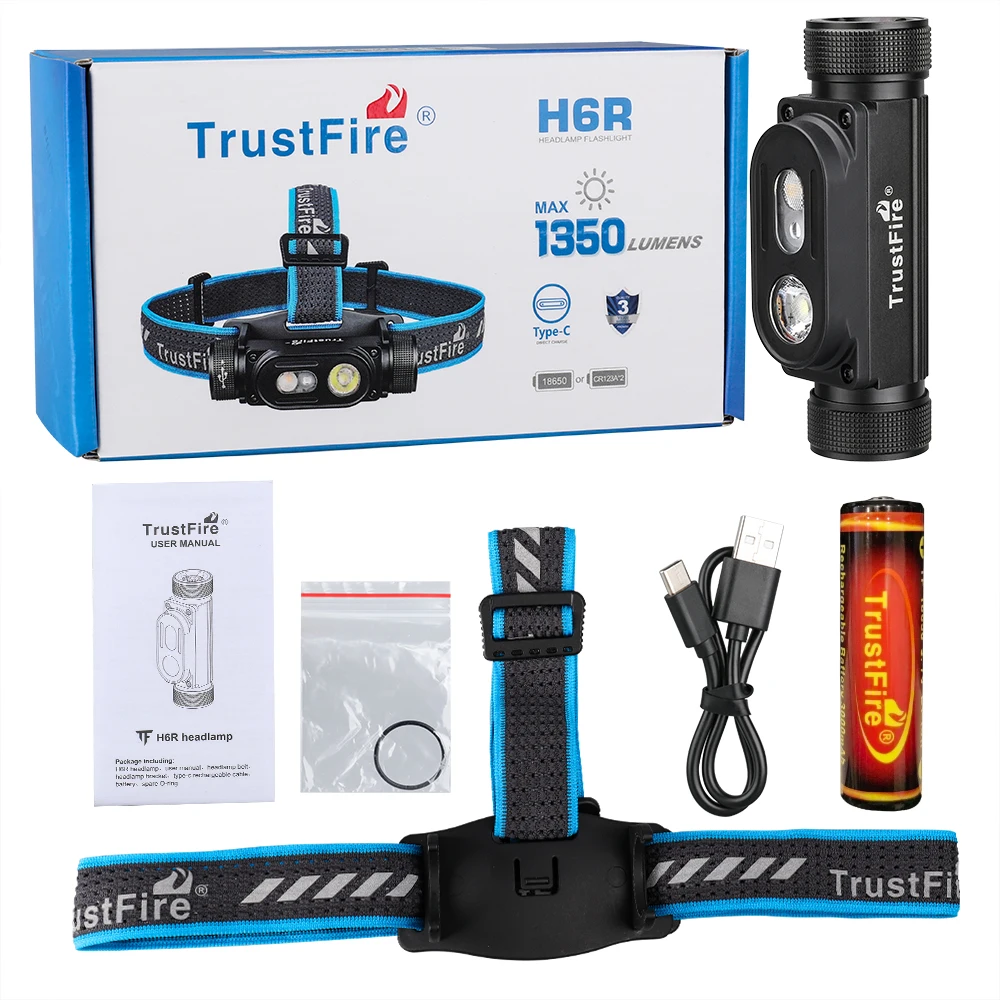

Product package:

1* H6R Headlamp

1* 2600mAh battery

1* Type C charging cable

1* Headlight belt

1* Headlight mount

1*User manual

1*Gift box*
